Straight Grooved Rollers

Straight Grooved Conveyor Rollers

Straight Grooved Rollers

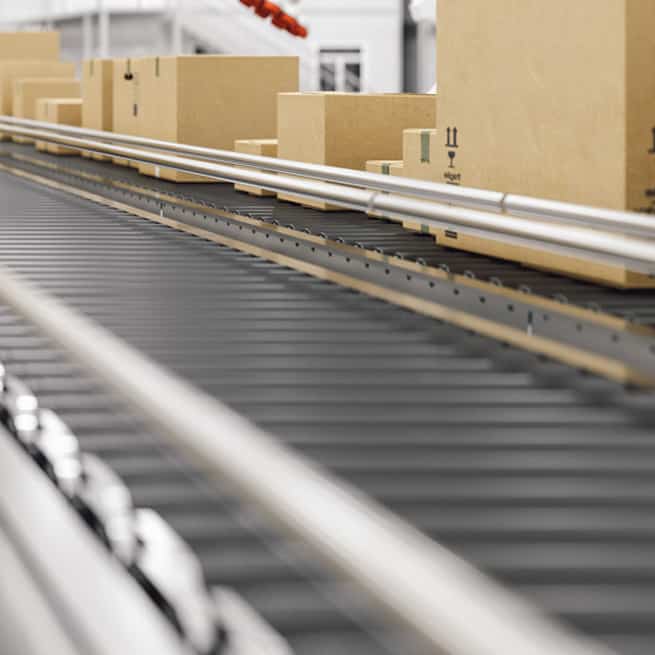

Straight Grooved Rollers are used in straight-line sections of conveyor systems driven by O-ring belts.

Woodsage has been producing high-quality grooved rollers, straight or tapered, for more than 40 years. Available for standard, high-speed or heavy-duty industrial conveyor systems.

Available Sizes: 1.5” up to 5” diameter

Available Materials: Hot-rolled, Cold-rolled, DOM, Galvanized, Aluminized & Stainless Steel

Grooved Straight Roller Assembly Product Specifications
Tube Size1.375” OD to 5” OD
Tube Gauges18 ga to 10 ga
GroovesPer Customer Requirements
Groove LocationPer your specification
Goove Radius0.118”, 0.1718”, 0.187”, 0.250”
Groove DepthPer Customer Requirements
FinishGalvanized, Raw or Coated
Coating MaterialsPolyurethane, PVC
Between Frames8" to 68"
Large End Diameters1.375” to 5"
Axle TypeRound, 5/16 Hex, 7/16 Hex, 11/16 Hex, ID Threaded, OD Threaded, Cotter Pin
Bearing TypesCommercial, Semi-Precision, Precision
  • Shortest lead times
  • Best on-time delivery
  • Made in USA
